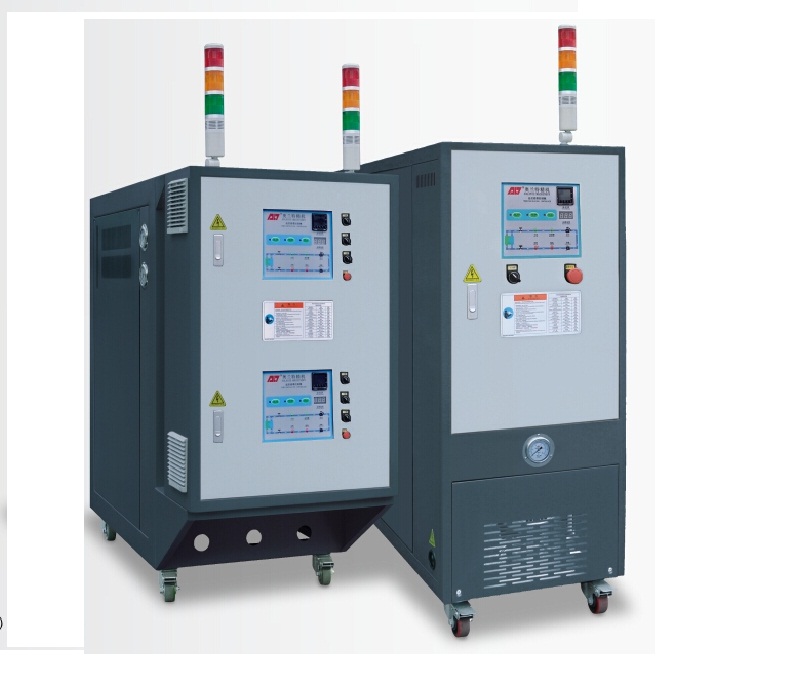

鎂合金壓鑄模溫機_壓鑄專用模溫機價格
特 點
Features
管路防爆裝置
Explosion-proof device for pipelines
回油溫度顯示表
Thermometer for return oil
開機自動排氣功能
Automatic air-exhausting function after startup
油泵反抽回油功能
Return oil back suction of oil pump
加熱功率切換功能
Switchover of heating power
隔離式電器控制箱,延長電器使用年限
Isolated electric box for longer services lives of electric appliances
負壓系統運轉(選購)
Negative-pressure system (optional)
RS485通訊功能,實現自動化管理.(選購)
RS485 communication function for automated management (optional)
即時冷卻回油關機功能
Instant cooling return oil shut-down function
熱油BY-PASS泄壓回路
BY-PASS pressure release loop for hot oil
油泵馬力和加熱功率可訂作
Customizable horsepower and heating power of oil pump
全系列采用德國SPECK油泵(磁力泵、漏油)
SPECK oil pumps (magnetic pumps never suffering from oil leakage) imported from Germany for all series products
全系列采用歐美高溫管路元件
American and European high-temperature pipeline components for all series products
電器采用OMRON. FUJI. TE. LG.
Brands OMRON, FUJI, TE and LG for electric appliances
溫度控制范圍: 常溫+25℃→350℃
Range of temperature control: +25℃→350℃ for incoming water
304不銹鋼一體管路,減少管阻及銹垢
304 stainless steel integrated pipelines for less pipe resistance and rust
控制方式: 采用進口微電腦或(選購)PLC控制
Control mode: imported microcomputer or PLC (optional)
安全保護完善,故障顯示,維修.保養無需專業人員
機器規格
|
模型 |
單位 |
TOH-18 |
TOH-36 |
TOH-48 |
TOHS-18 |
TOHS-36 |
TOHS-48 |
|
溫控范圍 |
℃ |
常溫-350℃ |
|||||
|
溫控精度 |
℃ |
PID±1℃ |
|||||
|
電源 |
|
AC3∮380V |
|||||
|
傳熱媒體 |
|
導熱油 |
|||||
|
冷卻方式 |
|
間接冷卻 |
|||||
|
膨脹箱容量 |
L |
25 |
25 |
30 |
42 |
42 |
50 |
|
加熱能量 |
KW |
9x2 |
12x2 |
20x2 |
18+18 |
24+24 |
40+40 |
|
泵浦功率 |
KW |
0.55 |
1.1 |
2.8 |
0.55+0.55 |
1.1+1.1 |
2.8+2.8 |
|
泵浦流量 |
L/MIN |
35 |
60 |
100 |
35+35 |
60+60 |
100+100 |
|
泵浦壓力 |
Kg/CM2 |
5 |
5.5 |
6.8 |
5.0+5.0 |
5.5+5.5 |
6.8+6.8 |
|
大電力消耗 |
KW |
19 |
26 |
52 |
38 |
52 |
104 |
|
特殊功能 |
|
泵浦反轉回油 |
|||||
|
警報功能 |
|
缺相/缺油/超溫/過載/溢油/加熱異常警報 |
|||||
|
冷卻水配管 |
INCH |
1/2 |
1/2 |
1/2 |
3/4 |
3/4 |
3/4 |
|
循環油配管 |
INCH |
3/4 |
3/4 |
1 |
3/4x2 |
3/4x2 |
1x2 |
|
外型尺寸 |
MM |
1250x420x1100 |
1250x420x1100 |
1450x500x1350 |
1350x550x1250 |
1350x550x1250 |
1435x600x1350 |
以上規格如有變更,恕不另行通知,特殊規格可另行設計制。
